Air Circuit Breakers : Dimensions : Fixed type 5000AF ([4000 — 5000A] AKS-40 — 50F)

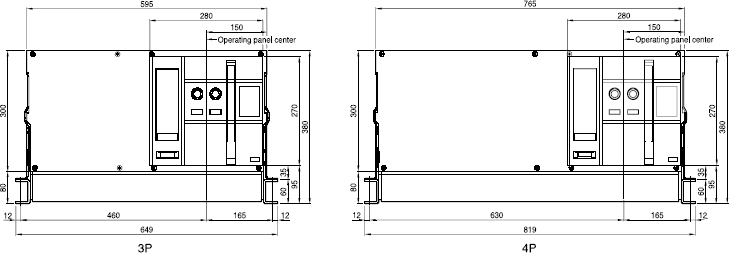

Front view

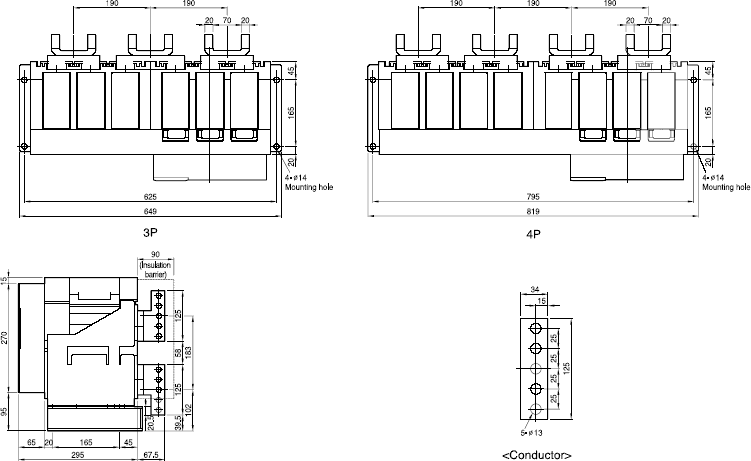

Vertical type

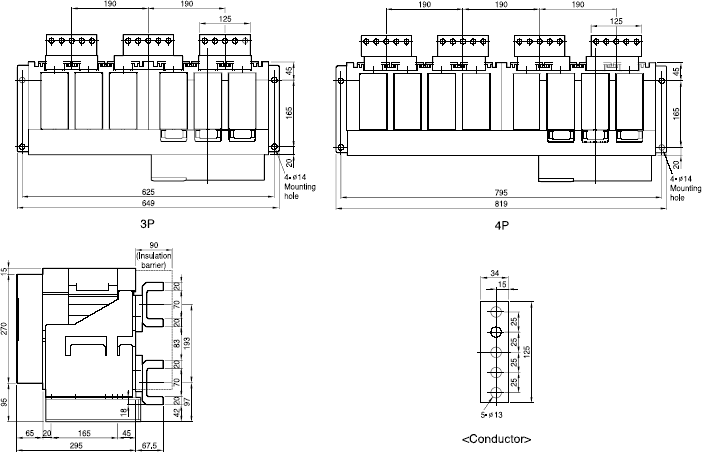

Horizontal type

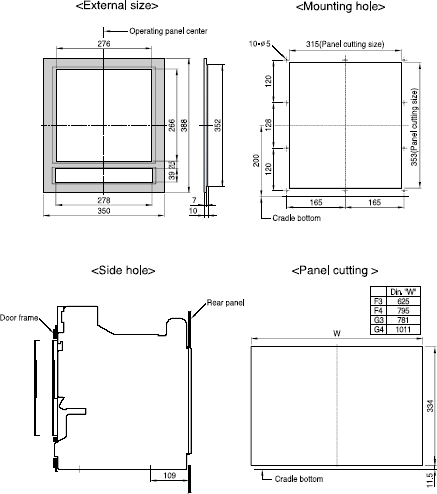

Door Frame: DF (AKH-G, AKS-F)

• Note)The dimensions are for drawout type.
